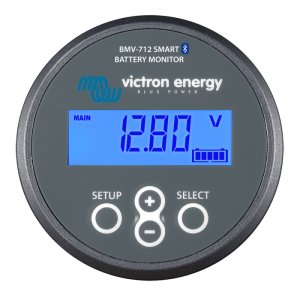

Victron Smart Battery Monitor - BMV-712 - Grey - Bluetooth Capable

p strong Smart Battery Monitor - BMV-712 - Grey - Bluetooth Capable strong p p strong Features strong p ul li Bluetooth inside With Bluetooth built-in the BMV Smart is ready for the Internet of Things IoT era With Bluetooth being implemented in most other Victron Energy products wireless communication between products will simplify system installation and enhance performance nbsp li li Download the Victron Bluetooth app Use a smartphone or other Bluetooth enabled device to - customize settings - monitor all important data on single screen - view historical data and to - update the software when new features become available nbsp li li Easy to install All electrical connections are to the quick connect PCB on the current shunt The shunt connects to the monitor with a standard RJ12 telephone cable Included RJ 12 cable 10 m and battery cable with fuse 2 m no other components needed Also included are a separate front bezel for a square or round display appearance a securing ring for rear mounting and screws for front mounting nbsp li li Midpoint voltage monitoring One bad cell or one bad battery can destroy a large expensive battery bank When batteries are connected in series a timely warning can be generated by measuring the midpoint voltage Please see the BMV manual section 5 2 for more information We recommend our Battery Balancer BMS012201000 to maximize service life of series-connected lead-acid batteries nbsp li li Very low current draw from the battery Current consumption 0 7Ah per month 1mA 12V and 0 6Ah per month 0 8mA 24V Especially Li-ion batteries have virtually no capacity left when discharged until low voltage shutdown After shutdown due to low cell voltage the capacity reserve of a Li-ion battery is approximately 1Ah per 100Ah battery capacity The battery will be damaged if the remaining capacity reserve is drawn from the battery A residual current of 10mA for example may damage a 200Ah battery if the system is left in discharged state during more than 8 days nbsp li li Bi-stable alarm relay Prevents increased current draw in case of an alarm nbsp li li Other features - Battery voltage current power ampere-hours consumed and state of charge - Remaining time at the current rate of discharge - Programmable visual and audible alarm - Programmable relay to turn off non critical loads or to run a generator when needed - 500 Amp quick connect shunt and connection kit - Shunt selection capability up to 10 000 Amps - VE Direct communication port - Stores a wide range of historical events which can be used to evaluate usage patterns and battery health - Wide input voltage range 6 5 ndash 70V - High current measurement resolution 10 mA 0 01A li ul p Warranty Info p p strong WARNING strong This product can expose you to chemicals which are known to the State of California to cause cancer birth defects or other reproductive harm For more information go to P65Warnings ca gov p strong Please contact your dealer for any returns repairs or support issues related to this product strong --- cis2 m2hrm5Rq ---
