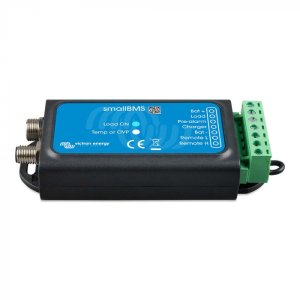

Victron SmallBMS f/Smart LiFePO4 Batteries w/M8

p strong SmallBMS for Smart LiFePO4 Batteries with M8 strong p p A simple and low-cost alternative to the VE Bus BMS The smallBMS can replace the VE Bus BMS in several applications It is however not suitable for use with VE Bus MultiPlus and Quattro inverter chargers it has no VE Bus interface p p The smallBMS is intended for use with Victron Smart LiFePo4 batteries with M8 circular connectors The smallBMS has three outputs similar to the VE Bus BMS Load Disconnect output The Load output is normally high and becomes free-floating in case of the cell under voltage default 2 8V cell adjustable on the battery between 2 6V and 2 8V per cell Maximum current 1A The Load output is not short-circuit protected p p strong The Load output can be used to control strong p ul li A high current relay or contactor li li The remote on off the input of a Battery Protect inverter or DC-DC converter or other loads li ul p strong Pre-alarm output strong p p The pre-alarm output is normally free-floating and becomes high in case of the imminent cell under voltage default 3 1V cell adjustable on the battery between 2 85V and 3 15V per cell Maximum current 1A not short circuit protected p p The minimum delay between pre-alarm and load disconnect is 30 seconds p p strong Charge disconnect output strong p p The Charger output is normally high and becomes free-floating in case of imminent cell overvoltage or over-temperature Maximum current 10mA The Charger output is not suitable to power an inductive load such as a relay coil nbsp p p strong The Charger output can be used to control strong p ul li The remote on off of a charger li li A Cyrix-Li-Charge relay li li A Cyrix-Li-ct Battery Combiner li ul p strong System on off input strong p p The system on off input controls both outputs When off both outputs will be free floating so that loads and chargers are turned off The System on off consists of two terminals Remote L and Remote H A remote on off switch or relay contact can be connected between L and H Alternatively terminal H can be switched to battery plus or terminal L can be switched to battery minus p p strong Protects 12V 24V and 48V systems strong p p Operating voltage range 8 to 70V DC p p strong LED indicators strong p ul li Load ON blue Load output high cell voltage 2 8V adjustable on the battery li li Temp or OVP red Charger output free floating due to cell over temperature 50 deg C cell under temperature 5 deg C or cell over voltage li ul strong Please contact your dealer for any returns repairs or support issues related to this product strong --- cis2 m2hrm5Rq ---
